Ball valves

Leading supplier of quality industrial valves, actuators, pipe, hose, flanges, fittings and all accessories
suspendisse potenti. Duis in mauris massa. Aenean non tellus nisl, eget viverra turpis.

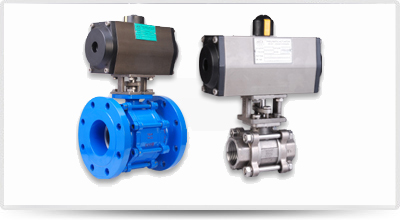

3 Piece Ball valve(Pneumatic Actuator Operated Flanged End / Screwed End)
SPECIFICATIONS:
Model : BMW
Vavle Design : 3 Piece Blow Out Proof Stem  Ball Valve  - Floating Ball  Up To 6” , Trunnion Ball 8” To 14 “  ( Fire Safe Design is available on request)
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1/2" to 14"
Material of Construction :
Body : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L), CAST STEEL ( WCB 216)  (other greads are available on request)
Ball : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is available on request)
Stem : S.S. 316, S.S. 304, And S.S.410
Seat And Seal : PTFE  (GFT / CFT is available on request)
Pressure Rating : 150 #, 300 # (600 # Available On Request)
End Connection : Screwed End To BSP/NPT, Socket Weld /But Weld Ends, Flanged End To ANSI B 16.5 Class 150 / 300 , (Table D, E, F is available on request)  , Triclover Ends
Fire Safe Design is Available

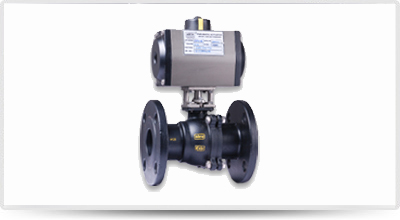

2 Piece Ball valve(Pneumatic Actuator Operated Flanged End / Screwed End)
SPECIFICATIONS:
Model : RBI
Valve Design : 2 Piece Blow Out Proof Stem  Ball Valve  - Floating Ball  Up To 6” , Trunnion Ball 8” To 12 “  ( Fire Safe Design is available on request)
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1/2" to 12"
Material of Construction :
Body : CF 8 (S.S, 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L), CAST STEEL ( WCB 216)  (Other Greads Are Available On Request)
Ball : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is avilable on request)
Stem : S.S. 316, S.S. 304, And S.S.410
Seat And Seal : PTFE  (GFT / CFT is available on request)
Pressure Rating : 150 #, 300 # (600 # Available On Request)
End Connection : Screwed End To BSP/NPT, Socket Weld /But Weld Ends, Flanged End To ANSI B 16.5 Class 150 / 300, (Table D, E, F is available on request), Triclover Ends
Fire Safe Design is Available

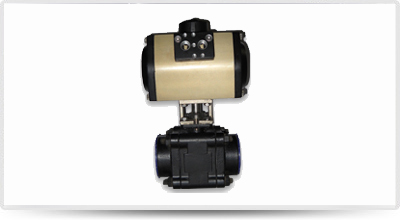

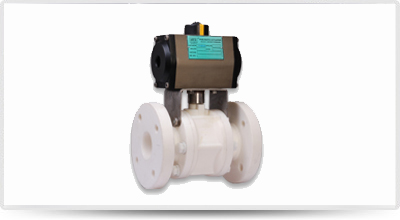

3 Piece Plastic Body Ball Valve – Pneumatic Actuator Operated Flanged End / Screwed End
SPECIFICATIONS:
Model : BMW – PP / BMW – UPVC / BMW-PVC
Valve Design : 3 Piece Blow Out Proof Stem Ball Valve
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1/2" to 12"
Material of Construction :
Body : POLYPROPYLENE / UPVC / PVC
Ball : POLYPROPYLENE / UPVC / PVC
Stem : S.S. 316, S.S. 304, And S.S.410
Seat And Seal : PTFE  (GFT / CFT is available on request)
Pressure Rating : PN 10
End Connection : Screwed End To BSP/NPT, Socket Weld /But Weld Ends, Flanged End To ANSI B 16.5 Class 150 / 300 , (Table D, E, F is available on request)

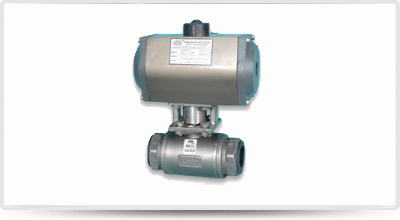

3  Piece High Pressure ( 200 Bar)  Ball Valve – Pneumatic Actuator Operated  Screwed  / Socket Weld  End
SPECIFICATIONS:
Model : WOG
Valve Design : 3 Piece Blow Out Proof Stem  Ball Valve  - Floating Ball  Up To 2”
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : ½” To 2”
Material of Construction :
Body : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L), CAST STEEL ( WCB 216)  (Other Greads Are Available On Request)
Ball : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is available on request)
Stem : S.S. 316, S.S. 304, And S.S.410
Seat And Seal : PTFE  (GFT / CFT is available on request)
Pressure Rating : 800 #, 900 #
End Connection : Screwed End To BSP/NPT, Socket Weld /But Weld Ends
Fire Safe Design is Available

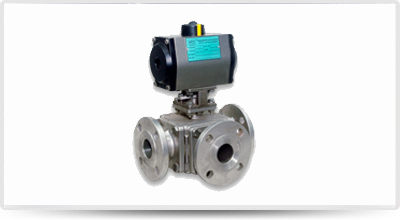

3 way 4 way Ball valves(Bolted Bonnet Design 3 Piece Ball Valve – Pneumatic Actuator Operated Flanged End / Screwed End)
SPECIFICATIONS:
Model : RBI
Valve Design : Bolted Bonnet Design  3 Piece Blow Out Proof Stem  Ball Valve  - Floating Ball  Up To 3” , Trunnion Ball 4” To 8 “
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : ½” To 8 ”
Material of Construction :
Body : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L), CAST STEEL ( WCB 216)  (Other Greads Are Available On Request)
Ball : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is available on request)
Stem : S.S. 316, S.S. 304, And S.S.410
Seat And Seal : PTFE  (GFT / CFT is available on request)
Pressure Rating : 150 #, 300 # ( 600 # Available On Request)
End Connection : Screwed End To BSP/NPT, Socket Weld /But Weld Ends, Flanged End To ANSI B 16.5 Class 150 / 300, (Table D, E, F is available on request), Tri-Clover Ends
Fire Safe Design is Available
3 Piece Forged Body Ball Valve – Pneumatic Actuator Operated   Screwed End – 800 #
SPECIFICATIONS:
Model : FSB
Valve Design : 3 Piece Forged Body Blow Out Proof Stem Ball Valve - Floating Ball Up To 2”
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : ½” To 2 ”
Material of Construction :
Body : Forged Cast Steel – A 105, Forged Stainless Steel F 304 / F 316
Ball : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is available on request)
Stem : S.S. 316, S.S. 304, And S.S.410
Seat And Seal : PTFE  (GFT / CFT is available on request)
Pressure Rating : 800 #
End Connection : Screwed End To BSP/NPT, Socket Weld /But Weld Ends
Fire Safe Design is Available

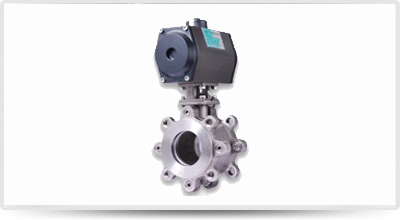

Sandwich Ball Valve (Design – Wafer Type Ball Valve – Pneumatic Actuator Operated)
SPECIFICATIONS:
Model : PRB
Valve Design : Sandwich Design – Wafer Type   Blow Out Proof Stem  Ball Valve  - Floating Ball  Up To 2”
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : ½” To 4 ”
Material of Construction :
Body : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L), CAST STEEL ( WCB 216)  (Other Greads Are Available On Request)
Ball : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is available on request)
Stem : S.S. 316, S.S. 304, And S.S.410
Seat And Seal : PTFE  (GFT /CFTis available on request)
Pressure Rating : 150 #, 300 #
End Connection : Wafer Type Suits To ANSI B 16.5 Class 150  Flanges
