MANUAL BALL / BUTTERFLY VALVE

Sandwich Ball Valve (Design – Wafer Type Ball Valve )
SPECIFICATIONS:
Model : PRB
Vavle Design :
Sandwich Design – Wafer Type   Blow Out Proof Stem  Ball Valve  - Floating Ball  Up To 2”
Size Range : 1/2" to 4"
Material of Construction :
Body :
CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L), CAST STEEL ( WCB 216)  (Other Greads Are Available On Request)
Ball :
CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is available on request)
Stem :
S.S. 316, S.S. 304, And S.S.410
Seat And Seal :
PTFE  (GFT /CFT is available on request)
Pressure Rating : 150 #, 300 #
End Connection : Wafer Type Suits To ANSI B 16.5 Class 150  Flanges

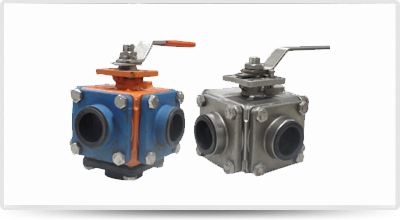

3 way 4 way Ball valves(Bolted Bonnet Design 3 Piece Ball Valve – Flanged End / Screwed End)
SPECIFICATIONS:
Model : RBI
Vavle Design :
Bolted Bonnet Design  3 Piece Blow Out Proof Stem  Ball Valve  - Floating Ball  Up To 3” , Trunnion Ball 4” To 8 “
Size Range : 1/2" to 8"
Material of Construction :
Body :
CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L), CAST STEEL ( WCB 216)  (Other Greads Are Available On Request)
Ball :
CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is available on request)
Stem :
S.S. 316, S.S. 304, And S.S.410
Seat And Seal :
PTFE  (GFT / CFT is available on request)
Pressure Rating : 150 #, 300 # ( 600 # Available On Request)
End Connection : Screwed End To BSP/NPT, Socket Weld /But Weld Ends, Flanged End To ANSI B 16.5 Class 150 / 300, (Table D, E, F is available on request), Tri-Clover Ends
Fire Safe Design is Available

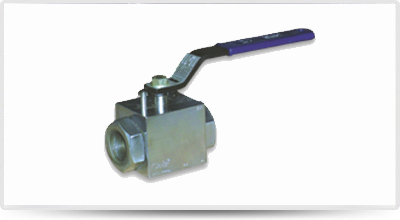

2/2 HIGH PRESSURE (BALL VALVE 700 BAR)
SPECIFICATIONS:
Body & Adaptor : Forged C.S. / S.S.304 / S.S.316
Ball : S.S.304 / S.S.316
Steam : S.S.304 / S.S.316
'O' Ring : Viton
Washer : Delerine
Stopper Pin : S.S.304
Washer : Spring steel
Bolt : C.S. / S.S.
Handle & Stopper Plate : CS Powder Coated
Pressure : As per table
Temprature : 80° C (High Temprature Available on Request)
Media : Air,water,Oil & Gas.

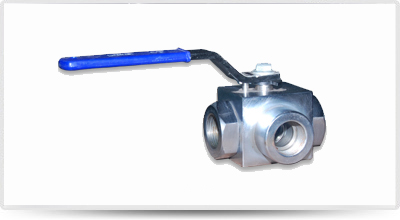

3/2 HIGH PRESSURE (BALL VALVE 500 BAR)
SPECIFICATIONS:
Body & Adaptor : Forged C.S. / S.S.304 / S.S.316
Ball : S.S.304 / S.S.316
Steam : S.S.304 / S.S.316
'O' Ring : Viton
Washer : Delerine
Stopper Pin : S.S.304
Washer : Spring steel
Bolt : C.S.
Handle & Stopper Plate : CS Powder Coated
Pressure : As per table
Temprature : 80° C (High Temprature Available on Request)
Media : Air, water, Oil & Gas.

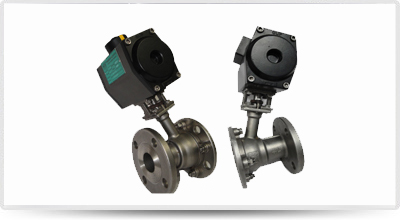

FLUSH BOTTOM BALL VALVE (DESIGN –WAFER TYPE/FLUSH BOTTOM BALL VALVE-PNEUMATIC ACTUATOR OPERATED)
SPECIFICATIONS:
Model : FBV
Vavle Design :
FLUSH BOTTOM-WAFER TYPE BLOW OUT PROOF STEAM  BALL VALVE-FLOATING UP TO 2”
Actuator   SINGLE ACTING (SPRING RETURN) /DOUBLE ACTING
Size Range      : 1” TO 4”
Material of Construction :
Body : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M (S.S. 316 L), CAST STEEL (WCB 216) (Other Greads Are Available On Request)
DISC : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M (S.S. 316 L), CAST STEEL (WCB 216) (Other Greads Are Available On Request)
Stem :

S.S. 316, S.S. 304, and S.S.410
Seat And Seal :
PTFE (GFT /CFT is available on request)
Pressure Rating : 150#
End Connection : WAFER TYPE SUITS TO ANSI B 16.5 CLASS 150 FLANGES
Fire Safe Design is Available
FLUSH BOTTOM Ball valves( DESIGN-WAFER FLUSH BOTTOM Ball Valve –MANUAL OPERATED)
SPECIFICATIONS:
Model : FBV
Vavle Design :
FLUSH BOTTOM-WAFER TYPE BLOW OUT PROOF STEAM  BALL VALVE-FLOATING UP TO 2”
Size Range      : 1" to 4"
Material of Construction :
Body :

CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L), CAST STEEL ( WCB 216)  (Other Greads Are Available On Request)
Ball : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M( S.S. 316 L) ( Solid Ball is available on request)
Stem :

S.S. 316, S.S. 304, And S.S.410
Seat And Seal :
PTFE  (GFT / CFT is available on request)
Pressure Rating : 150 #
End Connection : WAFER TYPE SUITS TO ANSI B 16.5 CLASS 150 FLANGES
Fire Safe Design is Available

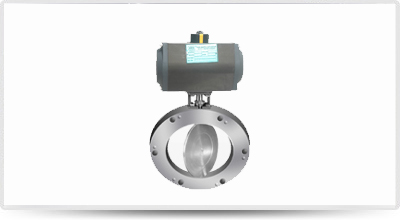

WAFER - CENTER DISC DESIGN PHARMA BUTTEFLY VALVE WITH PNEUMATIC ACTUATOR OPERATED
SPECIFICATIONS:
Model : PBV
Vavle Design : WAFER -CENTER DISC DESIGN PHARMA BUTTEFLY  VALVES
ACTUATOR : SINGLE ACTING (SPRING RETURN) / DOUBLE ACTING
Size Range      : 6” TO 12”
Material of Construction :
Body :

CF8 / CF8M / CF3M

Ball : CF8 / CF8M / CF3M
Stem :

S.S. 316, S.S. 304, AND S.S.410

GLAND SEAL :
SILICON
SEAT : SILICON
PRESSURE RATING : UPTO 6 BAR/VACCUM
End Connection : WAFER TYPE TO SUIT   ANSI 150 # FLANGES (OTHER   STANDARD ALSO AVAILABLE ON REQUEST)

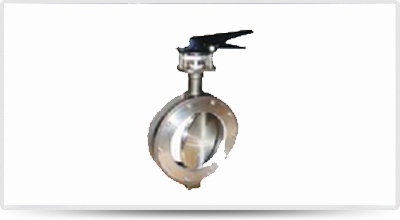

WAFER - CENTER DISC DESIGN PHARMA BUTTEFLY VALVE MANUAL HAND LEVER OPERATED
SPECIFICATIONS:
Model : PBV
Vavle Design : WAFER -CENTER DISC DESIGN PHARMA BUTTEFLY VALVES
Size Range      : 6” TO 12”
Material of Construction :
Body :

CF8 / CF8M / CF3M

Ball : CF8 / CF8M / CF3M
Stem :

S.S. 316, S.S. 304, AND S.S.410

GLAND SEAL :
SILICON
SEAT : SILICON
PRESSURE RATING : UPTO 6 BAR/VACCUM
End Connection : WAFER TYPE TO SUIT   ANSI 150 # FLANGES (OTHER   STANDARD ALSO AVAILABLE ON REQUEST)

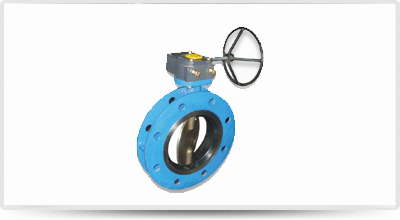

Butterfly Valve WAFER TYPE Short Pattern Double Flanged Type Center Disc Design Butterfly Valve With GEAR OPERATED
SPECIFICATIONS:
Model : DFW -ECO
Vavle Design : Short Pattern Double Flanged Type Center Disc Design Butterfly Valves
Size Range      : 4” To 48”
Material of Construction :
Body :

Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316

Ball : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (Nylon – Teflon Coated / Rubber Lined)
Stem :

S.S. 316, S.S. 304, And S.S.410
GLAND SEAL :
PTFE  (GFT / CFT is available on request)
SEAT : EPDM / Nitrile /Hayplon/Viton (Moulded Or Replacable Mufler type)
PRESSURE RATING : PN 10 / PN 16
End Connection : Wafer Type To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)

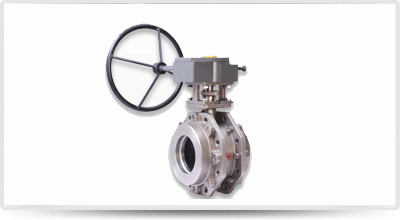

SPHERICAL DISC VALVE HANDLE / GEAR OPERATED
SPECIFICATIONS:
Model : SDV
Vavle Design : WAFER TYPE HIGH PERFOMANCE DOUBLE ECCENTRIC DISC DESIGN BUTTERFLY VALVE
Size Range      : 1.1/2” TO 48”
Material of Construction :
Body : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316  (IS 2062 Gr B for Fabricated Design)
Ball : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B for Fabricated Design)
Stem :

S.S. 316, S.S. 304, and S.S.410
GLAND SEAL :
PTFE (GFT / CFT is available on request)
SEAT : EPDM / NITRILE / PTFE
PRESSURE RATING : PN 10 / PN 16 /PN 25/150 # / 300 #
End Connection : Wafer Type to Suit   ANSI 150 # Flanges (Other   Standard Also  Available On Request)
