CYLINDER OPERATED VALVES

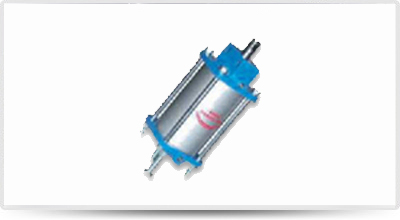

VAC MODEL LINEAR ACTUATOR
SPECIFICATIONS:
Bore : ø63mm to 400mm
Storke : On request Upto 1000 mm.
Storke Adjustment : Provided for small adjustment of travel
Pressure : 12 bar Maximum
Temp.Range : -20° C to 80° C (viton seat upto 150° C)

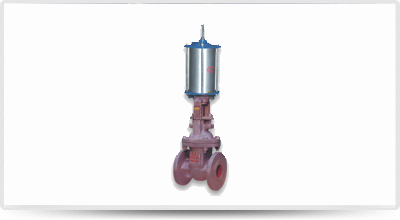

CYLINDER OPERATED GATE VALVE
SPECIFICATIONS:
End Connection : Flanged and / or lugged to ANSI B 16.5 RF 150# But Wold Ends to ANSI B 16.5
Face toFace : ANSI B 16.10
Manufacturing Std : API 600
Inspection Testing Std : API 598

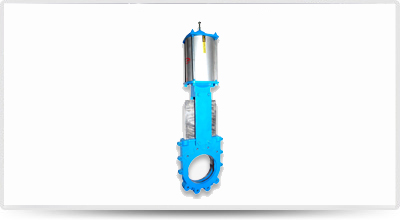

ISO PNEUMATIC CYLINDER OPERATED KNIFE GATE AND PULP VALVE
SPECIFICATIONS:
Type : Normally Close / Open
Actuator : Single / Double Acting Pneumatic Cylinder
Size Range : 1/2" to 24 "
Valve Body : S.Steel / Cast Iron
Gate(Plate) : S.Steel / Cast Steel
Seat : Metal to Metal & Rubber Seated
Pneu.PreSS : 4 to 12 Bar
Temprature : Upto 200° C (250° C On request)
Ends : 150# / 300# / 600#
Application : Air, water, Oils, Gas & Steam & Hydraulic Oils
