SOLENOID VALVES

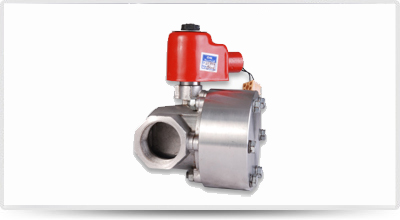

ISD (Diaphragm type)
SPECIFICATIONS:
Model : ISD
Actuator : Diaphragm Type Internal Pilot Operated
Type : Normally Close / Open
Size Range : 1/4" to 6 "
Body : ASTM 351 / CF8 / CF8M / CF3M
Diaphragm : Neoprene / Viton / Teflon
Pressure : 0.5 to 10 Bar
Temprature : Upto 120 °C
Ends : Screwed / Flanged / Triclover
Media : Air,water,Oils,Gas Vaccum etc.
Coil encloser modes : IP20 / IP65/IP67 (Flame proof / Explosion proof as per IS 2148 Std for Class ||A||,|| B||,||C zone)
Coil rating : Continuous Rated
Available Volt : 12v,24v,48v,110v,230v AC/DC

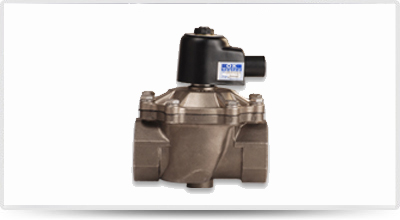

2/2 WAY DIAPHRAGM TYPE SOLENOID VALVE
SPECIFICATIONS:
Model : USD
Type NORMALLY CLOSED
Size : ½” BSP / NPT
Body : Brass Forged
Pressure : 0.5 ˜ to 8" Bar
Temp. : Upto 85° C
Media : Air, Water, Oils & Gas
HPQX (high pressure piston type)
SPECIFICATIONS:
Valve : ASTM A 351~CF8 / CF8M / CF3M
Seat & Seals :

Teflon (silicon/viton EPDM on request)
Pressure : 2 to 110 bar
Temprature : Upto 90° C (150° on request)
Coil Voltage : 12v,24v,48v,110v,230v AC/DC
Insulation : H class Suitable Upto 140 °C
Coil Encloser Modes : IP20 / IP65 / IP67 (Flame proof/Explosion proof as per IS 2148 Std for Class ||A||,|| B||,||C zone)
Col Rating : Continuous Rated
Media : Hot Water / LD OL / water / Corrosive Media
HPSE (medium pressure piston type)
SPECIFICATIONS:
Valve Body : ASTM A 351~CF8 / CF8M / CF3M
Seat & Seals : Teflon (silicon/viton EPDM on request)
Pressure : 2 to 40 bar
Temprature : Upto 90° C (150° on request)
Coil Voltage : 12V,24V,48V,110V,230V AC/DC
Coil Encloser Modes : IP20 / IP65 / IP67 (Flame Proof / Explosion Proof as per IS 2148 STD for class || A ||,|| B ||,|| C Zone)
Col Rating : Continuous Rated
Media : Hot water / LD OL / water / Corrosive Media
HVS (piston type)
SPECIFICATIONS:
Valve Body : ASTM A 351 ˜ CF8 / CF8M / CF3M
Seat & Seals : Teflon
Pressure : 8 PSI to 180 PSI
Temprature : Upto 180° C
Coil Voltage : 12V,24V,48V,110V,230V AC/DC
Insulation : H Class Suitable Upto 180° C
Coil Encloser Modes : IP20 / IP65 / IP67 (Flame Proof /Explosion Proof as per IS 2148 STD for class || A ||,|| B ||,|| C Zone)
Col Rating : Continuous Rated
Media : Hot water / Steam / High Temrature Fluids.
GSD - GTD TYPE(Low pressure solenoid valve)
SPECIFICATIONS:
Model : GSD
Size Range : 3/8" to 6 "
Body : ASTM A 351~CF8 / CF8M / CF3M
Diaphragm : Neoprene / Nitrite / Teflon / E.P.D.M.
Pressure : 0 to 5 Bar
Temprature : -5° C to 85° C / 140° C (High Temp.On Request.)
Ends : Screwed / Flanged / Triclover
Media : Air,Hot water,Oils,Gas Vaccum etc.
Available Volt : 12v,24v,48v,110v,230v AC/DC
Coil Encloser Modes : IP20 / IP65 / IP67 (Flame Proof /Explosion Proof as per IS 2148 STD for class || A ||,|| B ||,|| C Zone)
Col Rating : Continuous Rated
Media : Hot water / Steam / High Temrature Fluids.

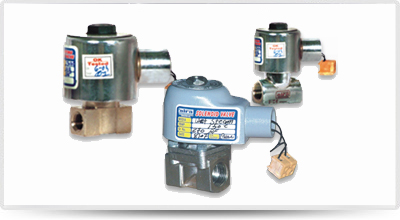

SSD - WSV TYPE
SPECIFICATIONS:
Body : Brass forged / Alluminium / S.Steel
Seat : Viton
Pressure : 0 to 12 Kg / cm2 (High Pressure On Req.)
Temprature of fluid : 5° C to 150° C
Coil Voltage : 12V,24V,48V,110V,220V AC/DC
Coil Insulation : 'H' Class
Port Size : 1mm to 10mm
Coil Rating : Continuous Rated
Media : Air / Gas / Oil / water / Chemical

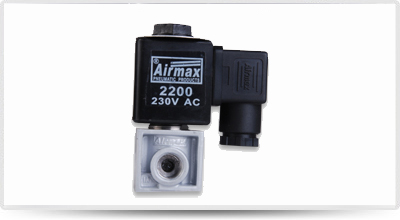

2/2 AND 3/2 DIRECT ACTING SOLENOID VALVE
SPECIFICATIONS:
Model : ARMDA / BSD
Size Range : 1/4" to 1/2" BSP / NPT
Pressure : Upto 10 Kg/cm2 (10 Kg / cm2, 60 Kg / cm2 On request)
Media : Air,water,Oils,Gas & Steam
Coil : All Std.voltage avilable
